Product Description:

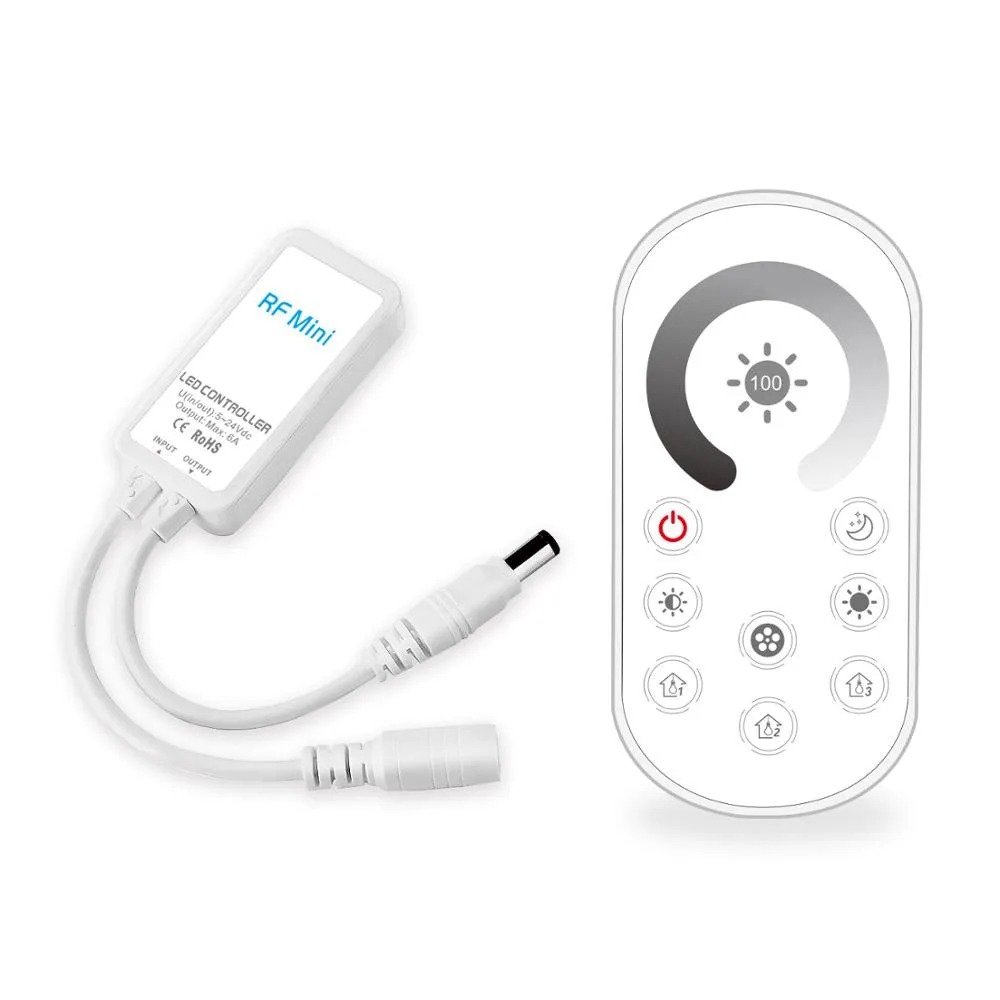

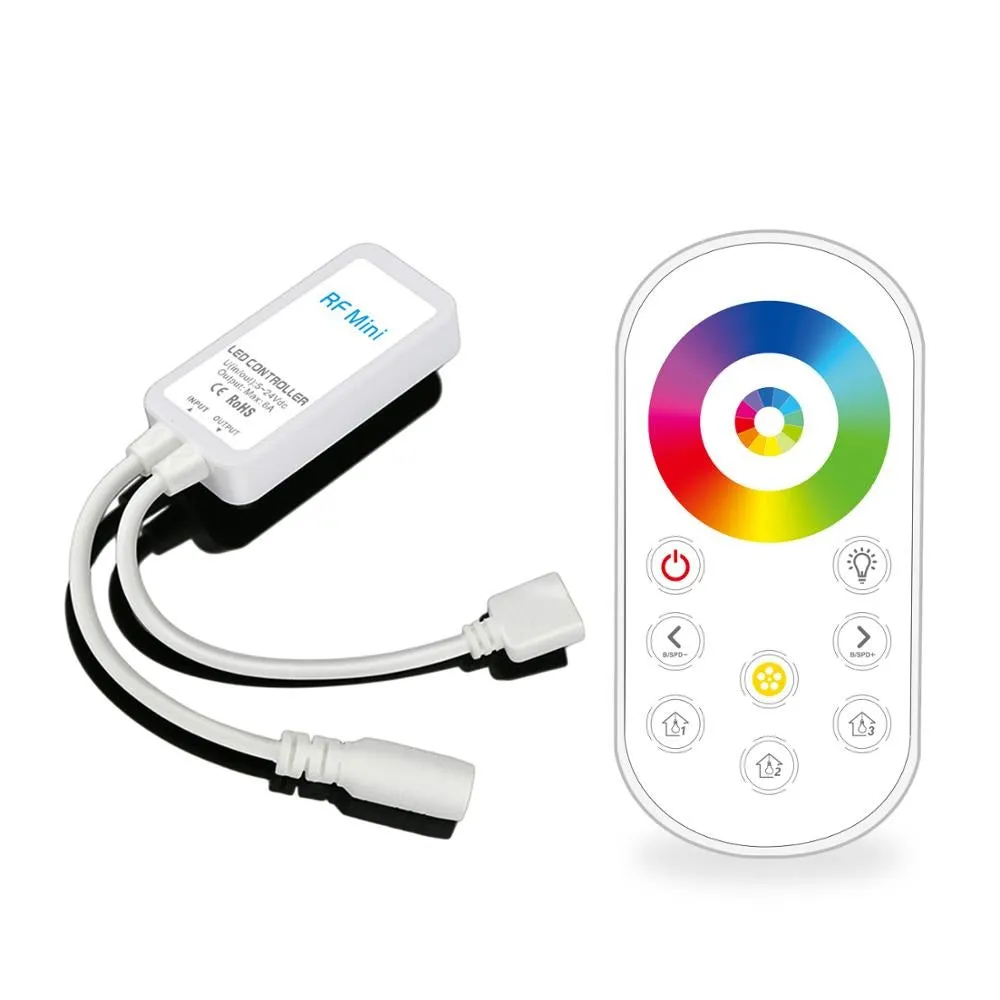

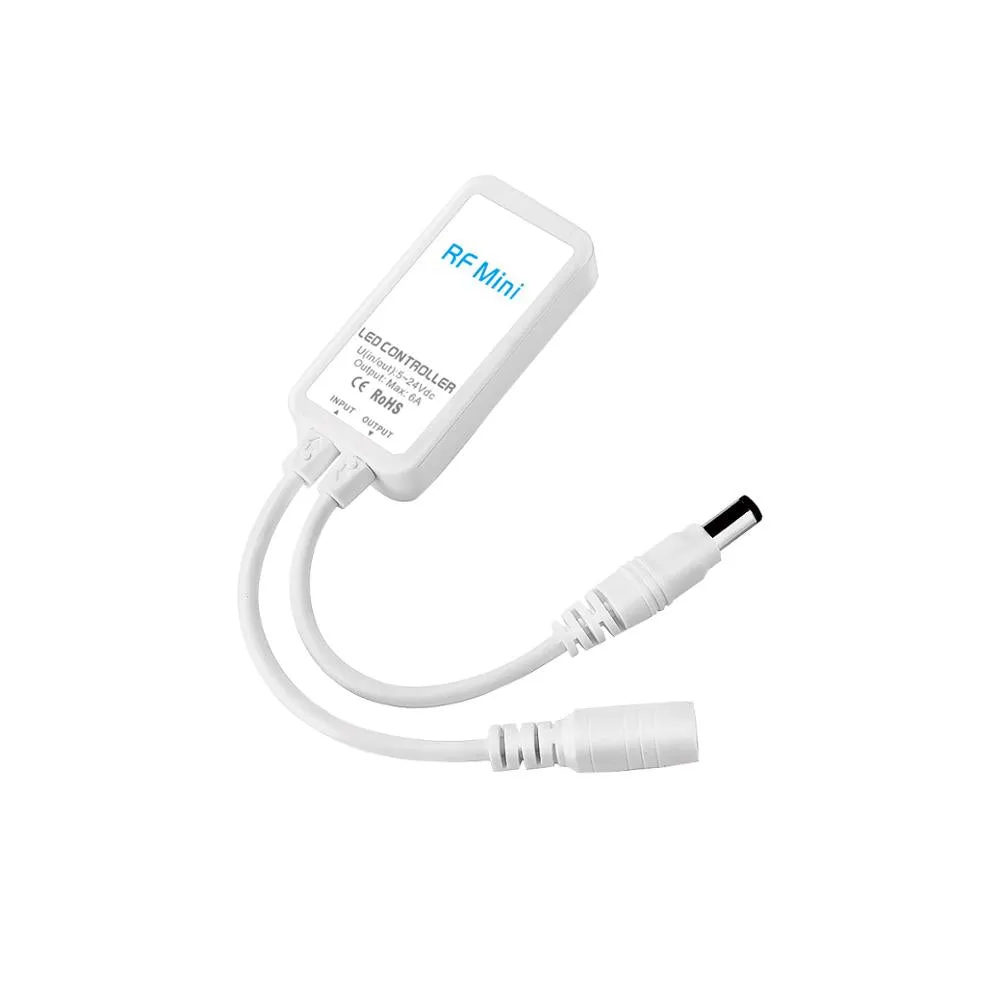

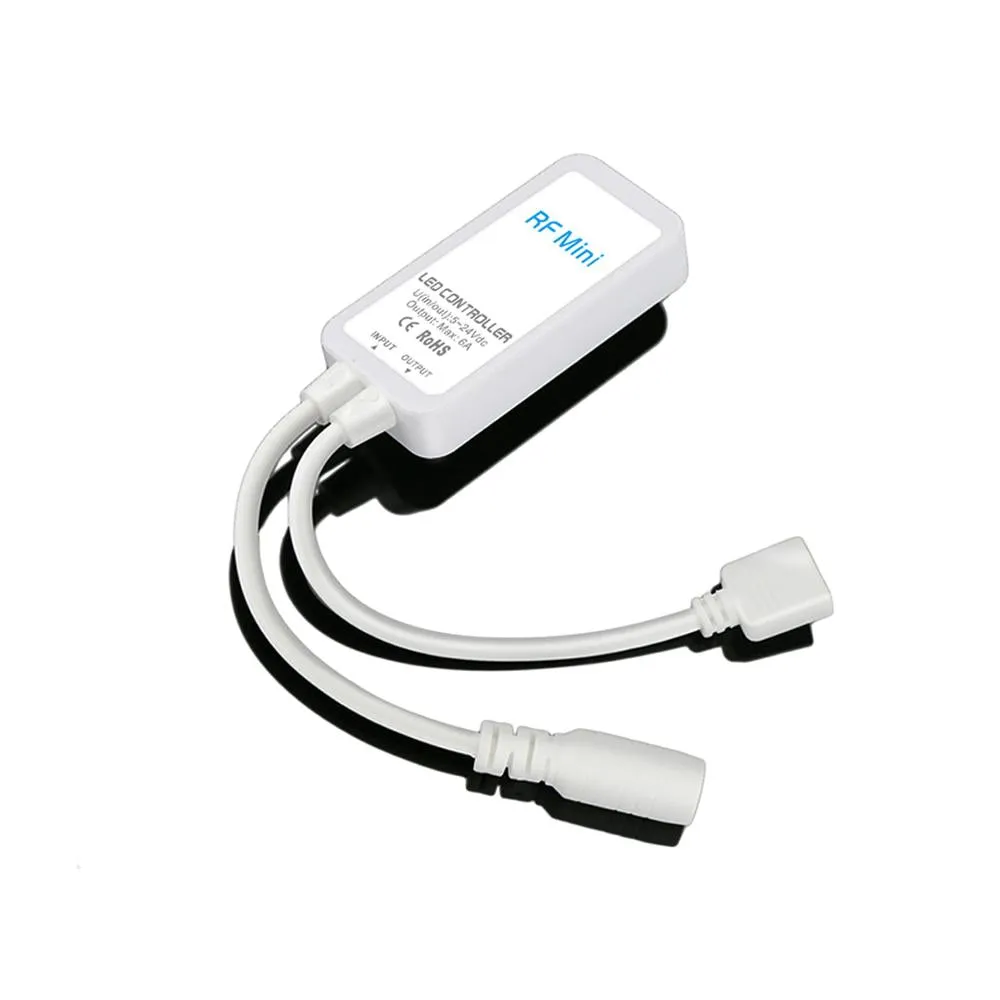

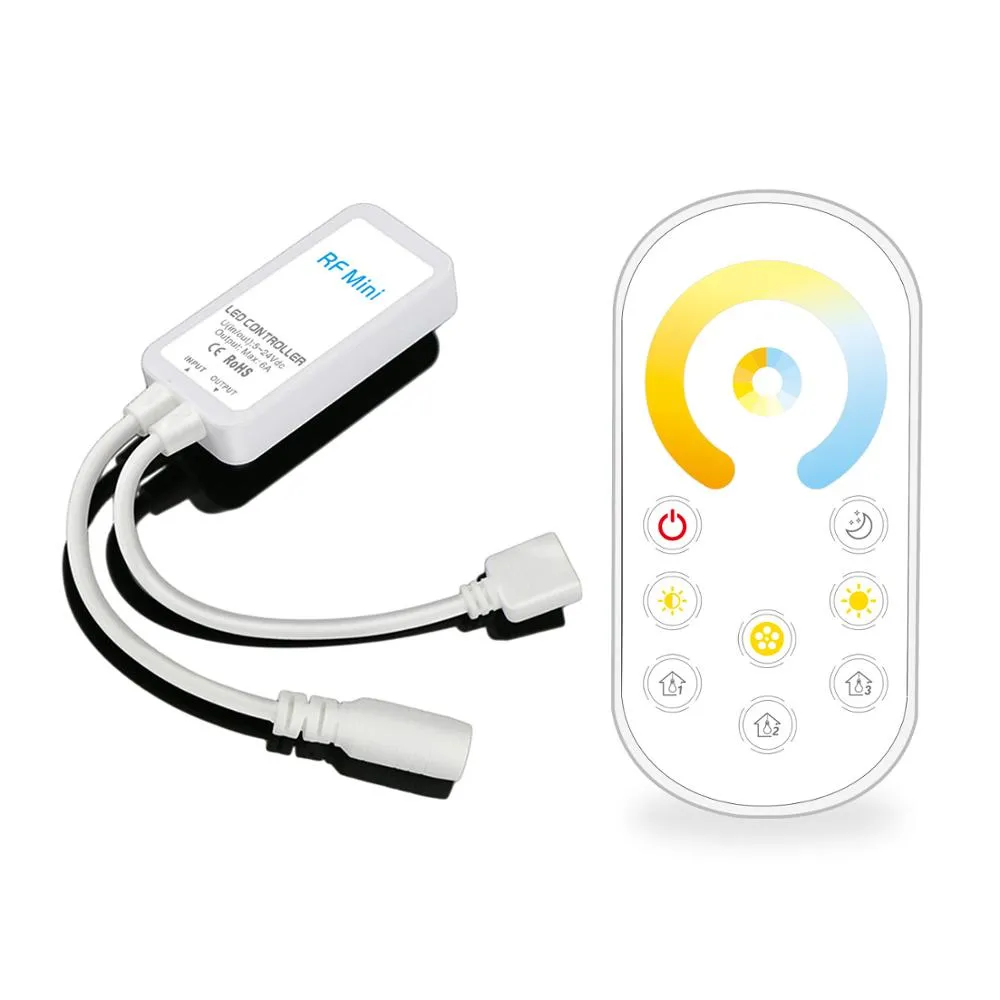

RF Ultrathin Mini-led controller has 5 types, which form a series.
The products of this series can be used to control five types of light bars: Dimmer, color temperature, RGB, RGBW, RGB CCT.
It can realize fade, jump, fade in and fade out, flash, blasting flash etc. dynamic lighting effects according to customers' actual needs. And a variety of static colors can be chosen from.

Main features:

Compact body and convenient wiring.
Simple and clear operation.
Compatible with full touch remote, one touch to change color and modes.
Diversified dynamic mode.
Soft dimming effect.

Technical Parameters:

Product name: RF Ultrathin Mini led controller.
Working temperature: -20-60℃.
Input voltage: DC5~24V.
Connection mode: Common anode.
Static power consumption: <0.5W.
Output power: Max: 5V:<30W, 12V:<72W, 24V:<144W.

Connection description:

Power input interface: adopt 5.5*2.1mm DC female connector ( use thick pure copper wires, can full load 6A, the regular dc connector can only load 3A）.

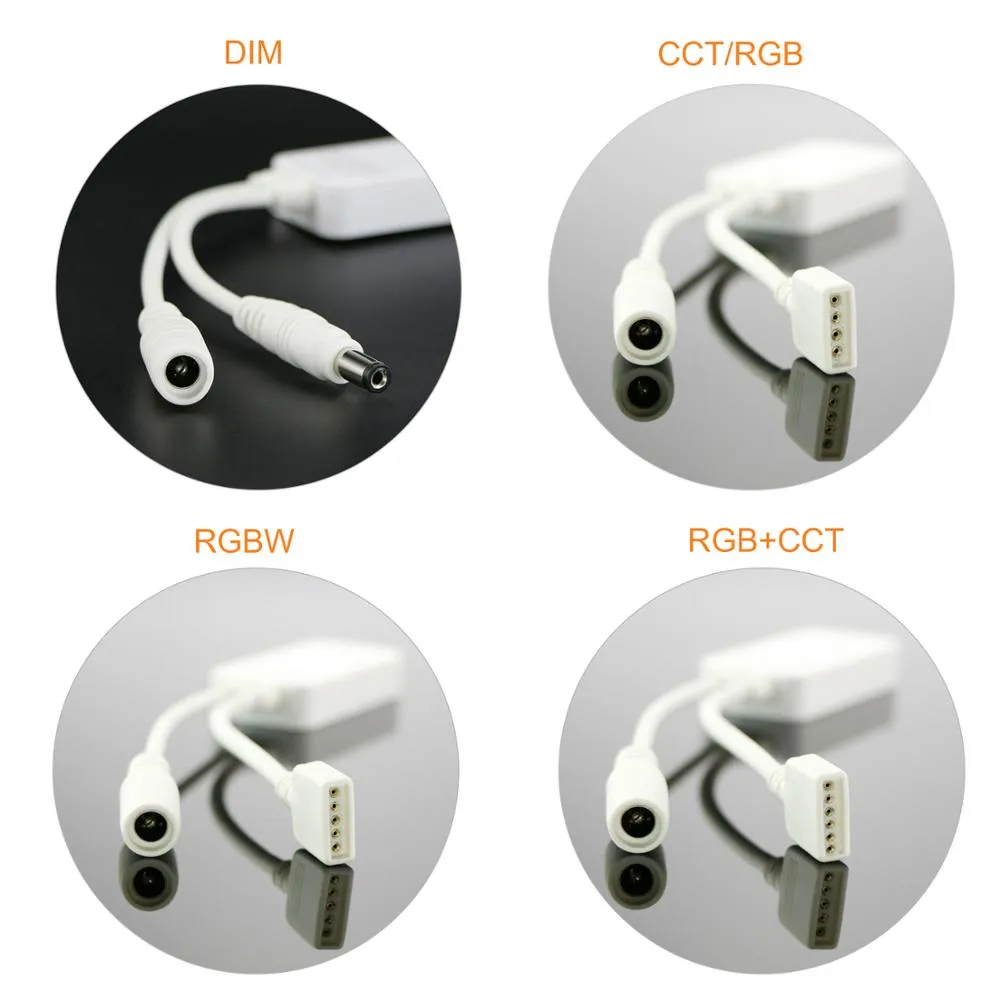

Output interface: Adopt DC male/ 4pin /5pin/ 6pin female led connector.

DIM: DC male connector.
CCT: 4pin female connector.
RGB: 4pin female connector.
RGBW: 5pin female connector.
RGBCCT: 6pin female connector. RGBCCT: 6pin female connector.
