Product Details
＋

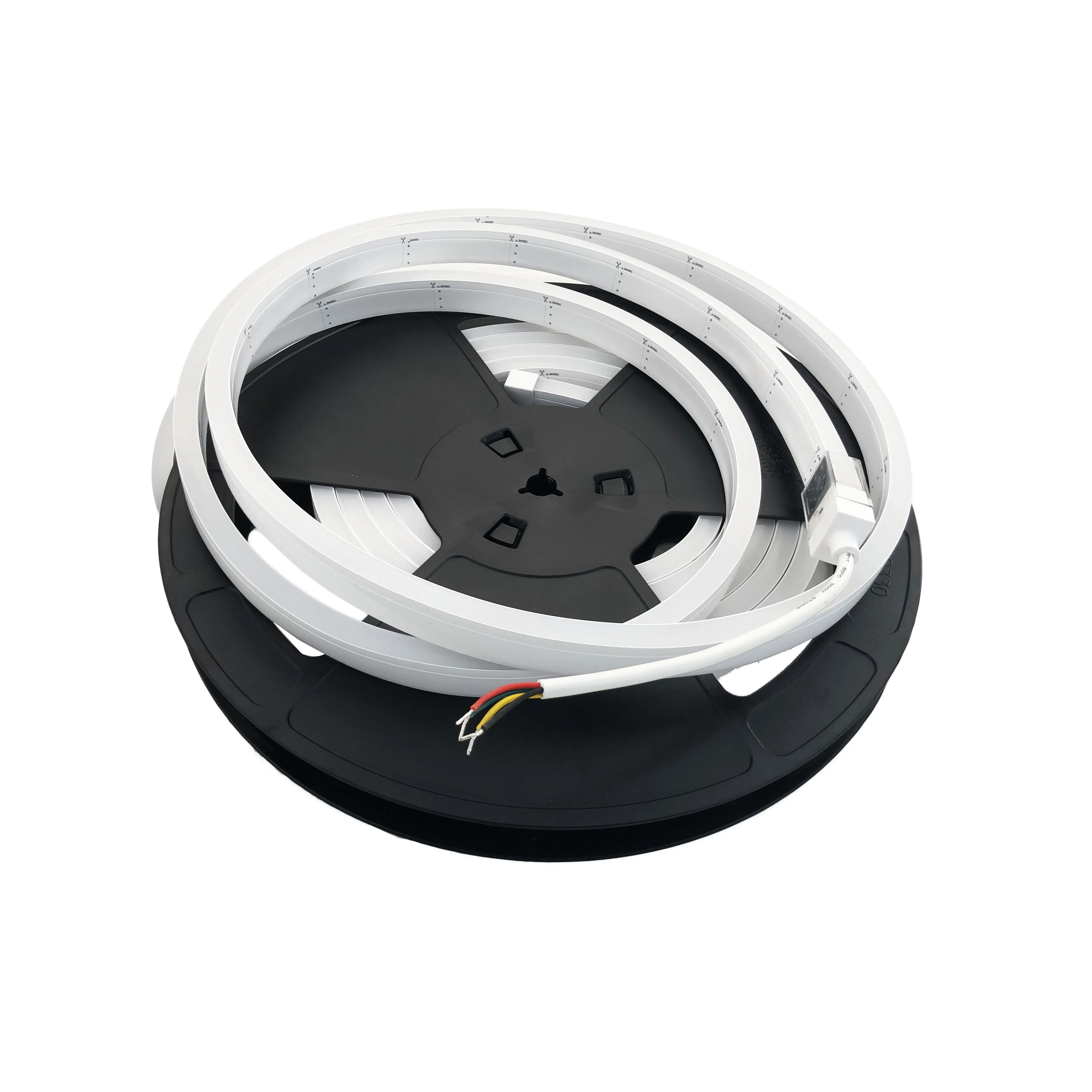

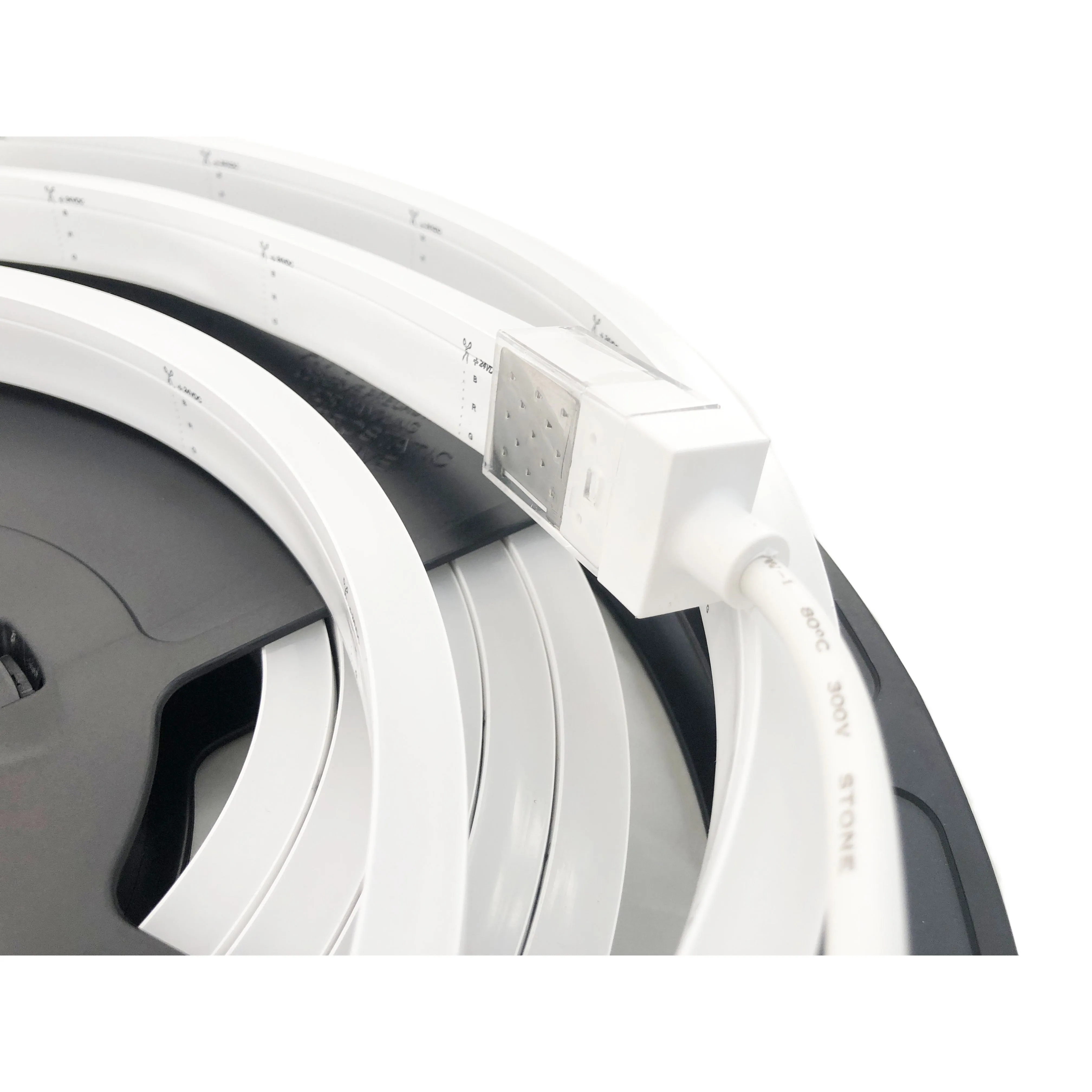

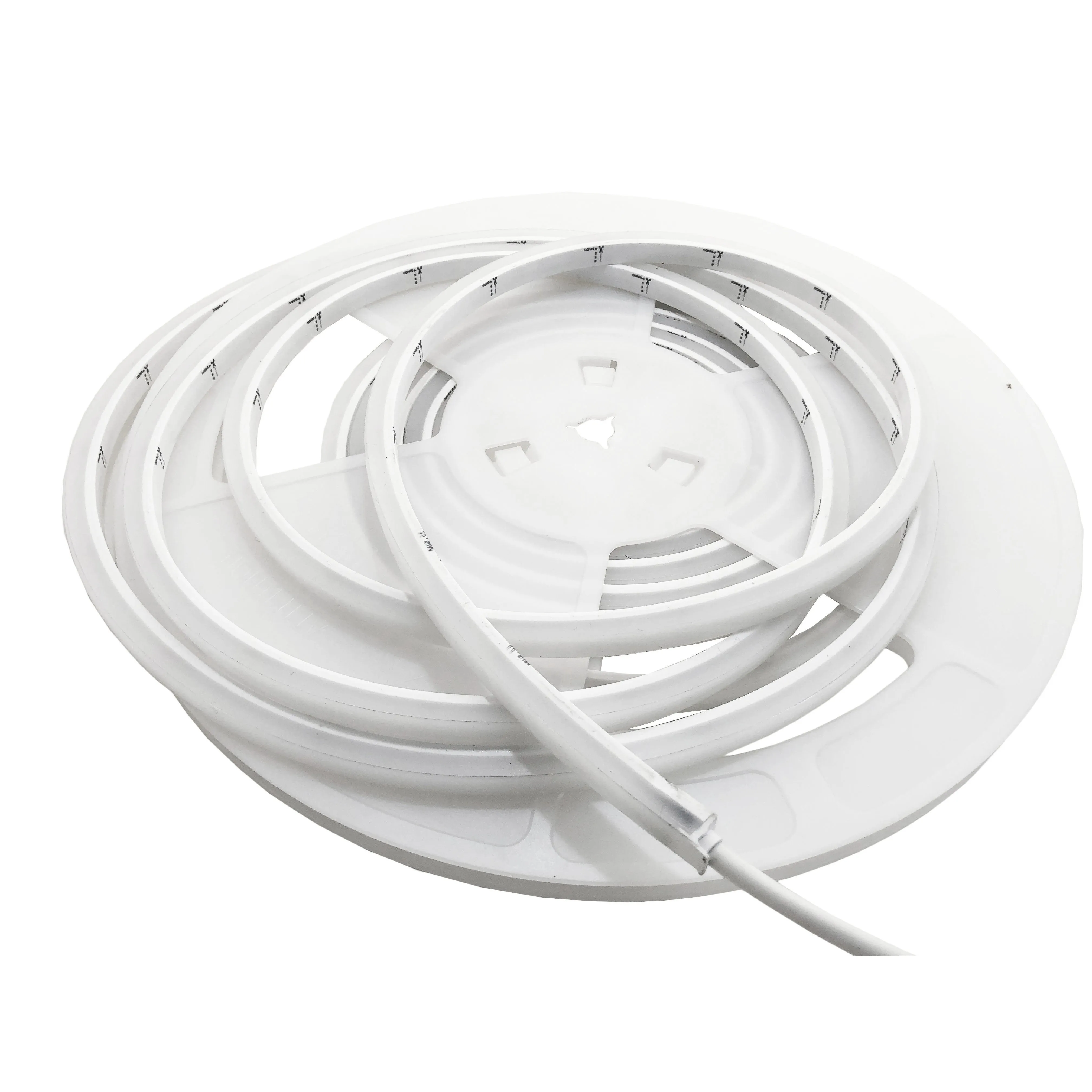

Beautiful, uniform RGB Neon FlexLED LED lighting solution.
This product is widely used to illuminate and
decorate locations such as film and television sets,
restaurants, theatrical spaces, exhibition halls, bars, shopping malls, parking lots and much more.
Two different types are available. One type that is designed for horizontal bending and one that is designed for vertical bending.
Pricing is for 5 meter lengths.
SPECIFICATIONS - OUTDOOR PRODUCT (IP65)
| Product Type | : | Neon White V2 - Horizontal | Neon RGB V2 -Horizontal | Neon White V2 - Vertical | Neon RGB V2 - Vertical |
| Product Code | : | NF-ABV2-H-24V-WXX-480-5050-5M | NF-ABV2-H-24V-RGB-480-5050-5M | NF-ECV2-V-24V-WXX-480-5050-5M | NF-ECV2-V-24V-RGB-480-5050-5M |
| CRI | : | ≥94 | ≥65 | ≥94 | ≥65 |
| Kelvin | : | 2300k/3000k/3500k/4000K/5000K | Colour Changing R/G/B | 2300k/3000k/3500k/4000K/5000K | Colour Changing R/G/B |
| PCB Color | : | White | White | White | White |
| Current, Rating | : | 0.416 A / meter | 0.6 A / meter | 0.416 A / meter | 0.6 A / meter |
| Voltage | : | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
| Wattage | : | 10 W / meter | 14.4W / meter | 10W / meter | 14.4W / meter |
| CC / CV | : | Constant Voltage | Constant Voltage | Constant Voltage | Constant Voltage |
| IP Rating | : | IP65 | IP65 | IP65 | IP65 |
| Lumens @ Full | : | 700 - 900 lm / meter | 600 - 800 lm / meter | 700 - 900 lm / meter | 600 - 800 lm / meter |
| Lumen / Watt | : | N/A | N/A | N/A | N/A |
| Lifetime* | : | 30,000 hours | 30,000 hours | 30,000 hours | 30,000 hours |

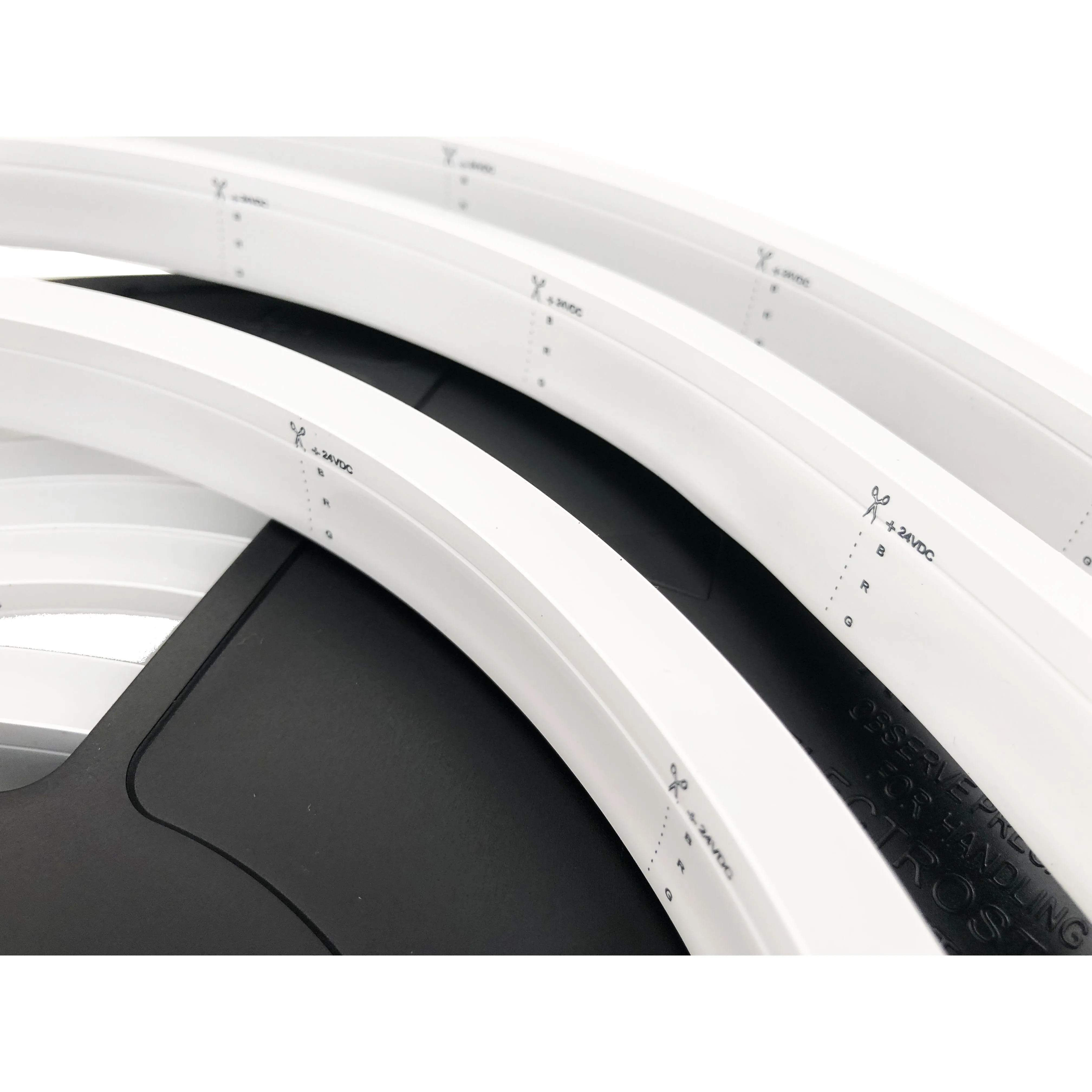

| Cutting Length | : | 5 CM | 5 CM | 5 CM | 5 CM |
| LED Quantity | : | 140 LED / meter | 96 LED / meter | 120 LED / meter | 120 LED / meter |
| Number of Contacts | : | 2 | 4 | 2 | 4 |
| LED Type | : | 3528 | 5050 | 3528 | 5050 |
| Copper Quantity | : | 3 Oz. | 3 Oz. | 3 Oz. | 3 Oz. |
| Temperature, Operating, Maximum | : | 70 C | 70 C | 70 C | 70 C |
| Temperature, Operating, Minimum | : | -40 C | -40 C | -40 C | -40 C |
| Agency Ratings | : | UL, CE, RoHS | UL, CE, RoHS | UL, CE, RoHS | UL, CE, RoHS |
| PCB Width | : | 10MM | 10MM | 10MM | 10MM |
| Maximum Recommended Length | : | 10 meters | 10 meters | 10 meters | 10 meters |
| Viewing Angle | : | 116 degree | 116 degree | 116 degree | 116 degree |
| Adhesion | : | Mounting Clips - Sold Separately | Mounting Clips - Sold Separately | Mounting Clips - Sold Separately | Mounting Clips - Sold Separately |
DOWNLOADS
-
Specification Sheet - Coming Soon
