Product Details
＋

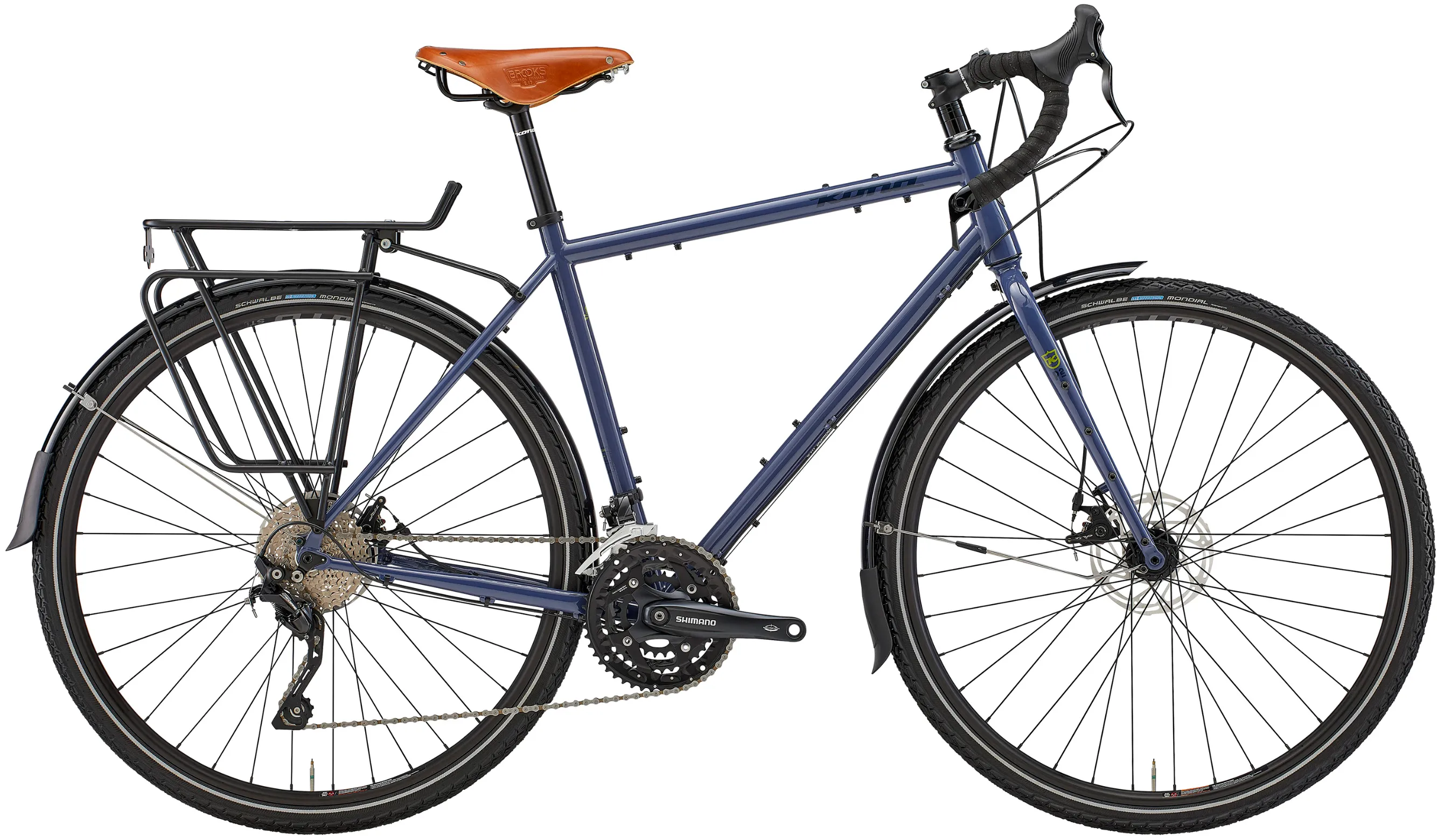

There’s a special breed of rider out there. Someone who doesn’t want to waste money on “hype.” Someone who stands by the rule that a 3x drivetrain is the only way, and there’s something special about bar-con shifters. This rider needs a bike that just does the thing and does it well. Long-haul rides, touring, and endless pedals into the sunset, the Sutra SE is that bike, and it feels good to ride. Full of the practical stuff, and none of the BS, it’ll carry you, your gear, and your dreams on your next endless journey.
SPECIFICATIONS
| FRAME MATERIAL | Kona Cromoly Butted |
| SIZES | 48, 50, 52, 54, 56, 58 |
| REAR SHOCK | n/a |
| FORK | Kona Project Two Cromoly Disc Touring |
| CRANKARMS | Shimano |
| CHAINRINGS | 26/36/48t |
| B/B | Shimano 68mm |
| PEDALS | n/a |
| CHAIN | Shimano Deore |
| CASSETTE | Shimano Deore 11-36t 10spd |
| CHAINGUIDE | n/a |
| F/D | Shimano Deore |
| R/D | Shimano Deore SGS |
| SHIFTERS | MicroShift |
| BRAKE CALIPERS | TRP Spyre C Flat mount |
| FRONT BRAKE ROTOR | TRP Spyre C 160mm |
| REAR BRAKE ROTOR | TRP Spyre C 160mm |
| BRAKE LEVERS | Tektro RRL-A |
| HEADSET | FSA No.1/No.10 |
| HANDLEBAR | Kona Road |
| STEM | Kona Road |
| SEATPOST | Kona Deluxe Thumb w/Offset 27.2mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Cork Tape |
| SADDLE | Brooks B17 Leather |
| FRONT HUB | Formula 100x12mm |
| REAR HUB | Formula 142x12mm |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i23 TCS 2.0 |
| FRONT TIRE | Schwalbe Marathon Mondial 700x40c |
| REAR TIRE | Schwalbe Marathon Mondial 700x40c |
| PAINT COLOR | Gloss Dusky Purple w/ Avocado & Indigo Decals |
| EXTRAS | Fenders w/ Mudflaps, Pannier Rack |
All specifications are subject to change without notice
GEOMETRYmminches
| SIZE | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST LENGTH | 480 | 500 | 520 | 540 | 560 | 580 |
| 2 | TT LENGTH | 523 | 538 | 555 | 571 | 588 | 606 |
| 3 | REACH | 375 | 380 | 385 | 390 | 395 | 400 |
| 4 | STACK | 551 | 570 | 591 | 610 | 632 | 650 |
| 5 | STANDOVER | 752 | 770 | 793 | 813 | 835 | 854 |
| 6 | HT ANGLE | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| 7 | HT LENGTH | 95 | 115 | 140 | 160 | 185 | 205 |
| 8 | ST ANGLE | 75 | 74.5 | 74 | 73.5 | 73 | 72.5 |
| 9 | CS LENGTH | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB DROP | 74 | 74 | 72 | 72 | 70 | 70 |
| 11 | BB HEIGHT | 281 | 281 | 283 | 283 | 285 | 285 |
| 12 | WHEELBASE | 1035 | 1047 | 1061 | 1073 | 1086 | 1099 |
| 13 | FRONT CENTER | 601 | 613 | 626 | 638 | 651 | 663 |
| 14 | FORK LENGTH | 415 | 415 | 415 | 415 | 415 | 415 |
| 15 | FORK OFFSET | 50 | 50 | 50 | 50 | 50 | 50 |
SIZING FIT
GRAVEL / DROP BAR / URBAN
| HEIGHT/INCHES | HEIGHT/METRIC | INSEAM/INCHES | INSEAM/METRIC | ROVE | LIBRE | SUTRA | DEWS | COCO |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Thanks for considering Substance Cycles for your next purchase. All bikes are fully assembled and test rode before leaving our bike shop in Edinburgh. Please allow 5-7 days for bicycle delivery although we aim to post bikes out the same day.
If any purchases are to be made using any cycle to work schemes, please either pop into the shop or get in touch via email/phone to get the ball rolling. If you are not 100% sure with bike sizing, please feel free to contact us to double check.
All bike sales include a free running in service after 6-10 weeks.
