The Lightest Full-Power Mountain Bike Ever*

*eMTB with drive unit capable of at least 85Nm of torque and battery capacity of at least 600Wh.

Just call it the “sweet spot” – the best of both worlds. Big-bike power and ride time, with lightweight-bike agility and handling. In other words, exactly what e-mtb riders everywhere have been waiting for. This might just be the most fun mountain bike we’ve ever made. 

What does SL means to us?

Sunset Laps. Seriously Lively. So Limitless. It stands for non-stop, high-speed flow. Blending handling magic with the feeling of boundless boost and range, the Moterra SL simply changes how you see the trail. Every up, down, hip, lip, corner, and drop – it all just blurs together into one big, happy, endless rush. Such Love.

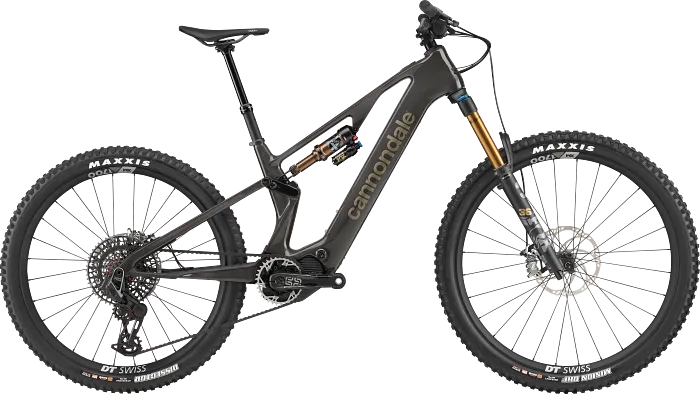

Moterra SL 1

FRAMESET

Frame
Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, 1-1/8” – 1.5” tapered headtube, angle adjust headset
Fork
Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
Headset
Acros Adjustable Angle (1.2°)
Rear Shock
Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm

E-SYSTEM

Drive Unit
Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
Battery
Custom 601Wh battery
Charger
Custom 4A
Display
Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible

DRIVETRAIN

Rear Derailleur
SRAM XO Eagle AXS, T-Type
Shifters
SRAM AXS T-Type POD Controller
Chain
SRAM XO Eagle, T-Type, Flattop
Crank
e*thirteen e*spec Plus, 165mm, 34T
Rear Cogs
SRAM XO Eagle, 10-52, T-Type, 12-speed

BRAKES

Brakes
SRAM Code Silver Stealth, 200mm HS2 rotors
Brake Levers
SRAM Code Silver Stealth

WHEELS

Rims
DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready
Spokes
DT Swiss Competition, straight pull
Tire Size
2.5
Wheel Size
29
Hubs
(F) DT Swiss 350, 15x110mm / (R) DT Swiss 350 Ratchet System 36 SL, 12x148mm
Tires
(F) Maxxis DHF, 29x2.5 ", 3C, EXO , tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO , tubeless ready

COMPONENTS

Handlebar
HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Stem
Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
Grips
Cannondale TaperRidge
Saddle
Fizik Terra Ridon X3, 145mm, Wingflex, K:ium Mobius rail 7x7mm
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)

CONNECTIVITY

Wheel Sensor
Cannondale Wheel Sensor

Moterra SL 2
FRAMESET
- Frame
  Moterra SL, Series 1 Carbon construction, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, DirectLine internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, tapered headtube, angle adjust headset
- Fork
  Fox Performance 36, 160mm travel, Grip Damper, 3-position adjust, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
- Headset
  Acros Adjustable Angle (1.2°)
- Rear Shock
  Fox Float X Performance Elite, 2 pos adj, EVOL LV, 210x55mm
E-SYSTEM
- Drive Unit
  Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
- Battery
  Custom 601Wh battery
- Charger
  Custom 4A
- Display
  Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
DRIVETRAIN
- Rear Derailleur
  Shimano XT
- Shifters
  Shimano Deore M6100, 12-speed
- Chain
  Shimano Deore 6100, 12-speed
- Crank
  e*thirteen e*spec Plus, 165mm, 34T
- Rear Cogs
  Shimano Deore 6100, 10-51, 12-speed
BRAKES
- Brakes
  Shimano Deore 6120 4-piston hydraulic disc, 203mm RT66 rotors
- Brake Levers
  Shimano Deore hydraulic disc
WHEELS
- Rims
  WTB KOM Tough i30, 30mm inner width, TCS tubeless ready
- Spokes
  DT Swiss Champion
- Tire Size
  2.5
- Wheel Size
  29
- Hubs
  (F) Formula DC-71132h, 15x110mm / (R) DT Swiss 370 Hybrid, 32h, 12x148mm
- Tires
  (F) Maxxis DHF, 29x2.5 ", 2C, EXO, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 2C, EXO, tubeless ready
COMPONENTS
- Handlebar
  Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
- Stem
  Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
- Grips
  Cannondale TaperRidge
- Saddle
  Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail 7x7mm
- Seatpost
  Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)
