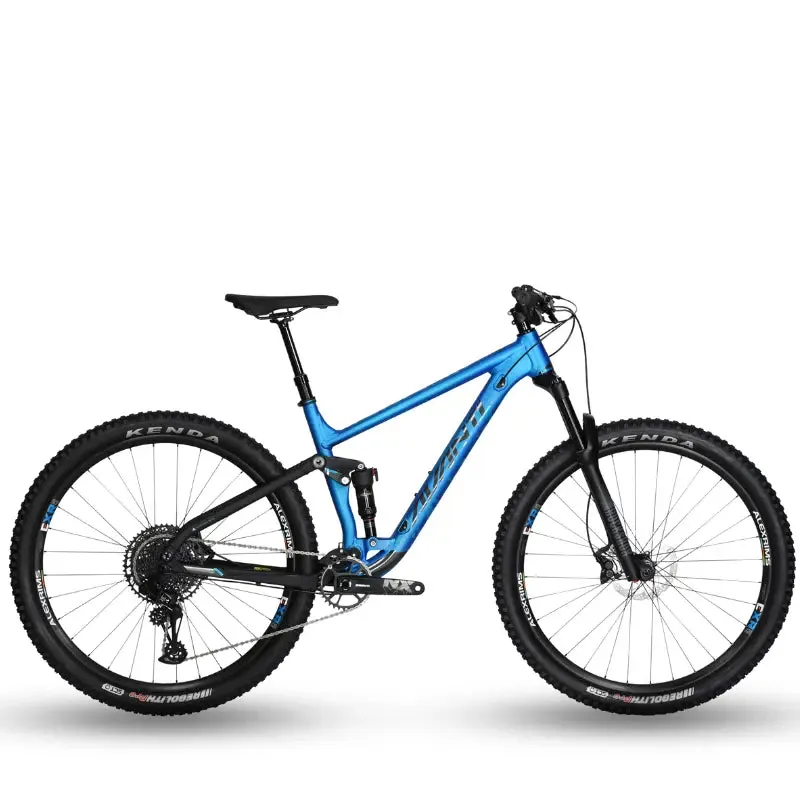

Elevate Your Trail Experience with the Avanti Hammer S1
The Avanti Hammer S1 is a part of the acclaimed Hammer S line, known for its 29er, 130mm travel trail bikes. These bikes are crafted in Germany with a focus on being exceptionally lightweight yet robust enough to tackle a diverse range of trails. The Hammer S1 stands out with its advanced features and adaptability, making it a top choice for riders who seek a bike that can keep up with their adventurous spirit.
Key Features at a Glance
- Frame: German-Engineered Light Alloy, 130mm Travel, 29er, 27.5 Compatibility
- Suspension: Rockshox Recon Gold RL Boost Fork with Debon Air Damper
- Drivetrain: SRAM NX Eagle 12-Speed
- Brakes: Shimano M420/401 Hydraulic 4 Piston
- Cockpit: Syncros with Internally Routed Dropper Post
- Color: Blue
- Wheel Size: 29 Inches (27.5 Compatible)
- Geometry-Adjusting Headset: For Flexible Riding Styles
Designed for the Trail Enthusiast
The Hammer S1's frame is not just about being lightweight; it's engineered for toughness. It can handle a variety of terrains and conditions, making it a reliable companion for your trail adventures.
Advanced Suspension for a Superior Ride
The Rockshox Recon Gold RL Boost fork equipped with a Debon Air damper ensures that your ride is smooth and responsive. This advanced suspension system is adept at absorbing shocks, providing a comfortable ride on rugged trails.
Smooth and Reliable Shifting
The SRAM NX Eagle 12-speed components offer bulletproof shifting, ensuring that you have a smooth and reliable gear transition on various terrains.
Powerful and Responsive Braking
Equipped with Shimano M420/401 hydraulic 4 piston brakes, the Hammer S1 provides exceptional stopping power and control, which is crucial for navigating steep and challenging trails.
Comfort and Control in the Cockpit
The Syncros cockpit with an internally routed dropper post enhances your comfort and control, allowing for an agile and responsive ride, especially on technical trails and steep descents.
Ideal for Diverse Trail Adventures
The Avanti Hammer S1 is designed for riders who crave a bike that can adapt to various trail conditions and riding styles. Its combination of lightweight design, robust construction, advanced suspension, and powerful brakes makes it an excellent choice for anyone looking to push their limits on the trails.
Specifications
| Description | |
| Category | MTB |
| Family | Performance |
| Model | Hammer S1 Mountain Bike |
| Sizes | S, M, L, XL |
| Colour | Blue |
| Frame | AL-6061 Ultralight Butted tubing, 130mm travel, cartridge bearing pivots, 1.5" tapered headtube, PF92 BB, 12 x 148m |
| Fork | Rockshox Recon Gold RL Debon Air, 130mm, air spring, 1.5" taper, rebound adjust, lock-out, Boost 110 15mm axle |
| Rear Shock | Rockshox Delux Select RT Debon Air, rebound adjust |
| Rear Derailleur | SRAM NX Eagle |
| Shifters | SRAM NX Eagle, 12sp |
| Crankset | SRAM NX Eagle,DUB, 32T |
| Brakes | Shimano MT420 hydraulic, 180mm rotors |
| Brake Levers | Shimano MT401 hydraulic |
| Wheelset / Rims | Alex EXR 27 Double-wall Alloy with eyelet 32H, Tubeless Ready |
| Hubs | Front: Alloy, 110x15mm 32H, Rear: Alloy 148x12mm, 32H |
| Spokes | Stainless Steel |
| Cassette | SRAM PG-1230 Cassette, 11-50T, 12 speed |
| Handlebar | Syncros Hixon 2.0 31.8mm, with 12mm rise, 9 deg sweep |
| Handlebar Stem | Alloy 31.8, 7 deg rise |
| Headset | Integrated Threadless 1-1/8th-1.5" (with extra lower geometry adjust lower cup for 27.5 " wheels) |
| Grips | Syncros Pro Lock-on |
| Tyres | Kenda Regolith, 29 x 2.4" Tubeless Ready, 120tpi |
| Saddle | Syncros ER2.5 |
| Seat Post | Syncros Duncan Dropper 31.6mm with internal cable routing |
| Bottom Bracket | SRAM DUB Pressfit |
| Chain | sRAM NX Eagle |
| EXTRAS | Prime Aero CH-LD-MINI chain guide |
Size Guide
GEOMETRY
| S | M | L | XL | ||
| 1 | Seat Tube Length (C-Top) | 410 | 450 | 485 | 515 |
| 2 | Horizontal Top Tube Length | 575 | 595 | 615 | 635 |
| 3 | Standover Height | 750 | 765 | 780 | 790 |
| 4 | Head Tube Length | 95 | 105 | 120 | 140 |
| 5 | Head Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| 6 | Seat Angle | 75 | 75 | 75 | 75 |
| 7 | BB Drop | 38 | 38 | 38 | 38 |
| 8 | Chainstay Length | 438 | 438 | 438 | 438 |
| 9 | Wheelbase | 1149 | 1170 | 1191 | 1212 |
| 10 | Reach | 423 | 440 | 455 | 470 |
| 11 | Stack | 603 | 612 | 626 | 645 |
The following are not displayed
| Fork Offset | 51 | 51 | 51 | 51 |
| Stem Length | 60 | 60 | 70 | 70 |
| Crank Length | 170 | 175 | 175 | 175 |
