The INFINIBAR PB6 8-Light Kit includes eight of Aputure’s first 2-foot (60cm) full-colour LED pixel bars. Featuring 48 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB6 excels in constructing unique, colourful designs that bring scenes to life in new and exciting ways.
The 8-Light Kit expands this mid-sized multitool’s capabilities, with not only eight times the available light, but also additional power cables, adapters, and light control grids in a sturdy flight case to extend your creative possibilities. And in addition to charging each light individually, the 8-Light Kit is equipped with a 330W Power Adapter with 8-Way Splitters that can simultaneously charge all fixtures.
The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB6’s 48 RGB pixels.
Featuring advanced wireless connectivity, the INFINIBAR PB6’s 48 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter.2 It also incorporates critical colour controls (including advanced HSI with white- point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.
The INFINIBAR PB6’s proprietary RGBWW chipset produces stunning colour quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment, and can reproduce >90% of colours within the Rec.2020 Colour Space. Matching Aputure’s high standards for colour, the INFINIBAR PB6 also produces accurate skin tones, measuring scores of CRI: 96 , TLCI: 98 , SSI (D56): 74, and SSI (Tungsten): 85.
With its lightweight yet durable aluminum housing, the INFINIBAR PB6 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allow the PB6 to be mounted with ease. And with its built-in 29.6Wh Lithium battery, the INFINIBAR PB6 can operate at its 14W max output for 100 minutes, making it a versatile and compact fixture for your lighting toolkit.
Features
8-Light Kit with 2ft (60cm) 14W RGBWW Full Color LED Pixel Bar
48 Independent Pixels (Lighting Zones)
Infinite Blending Design
Frosted Diffusion Layer
Approx. 100 Min Battery Life at Max Output (29.6Wh)

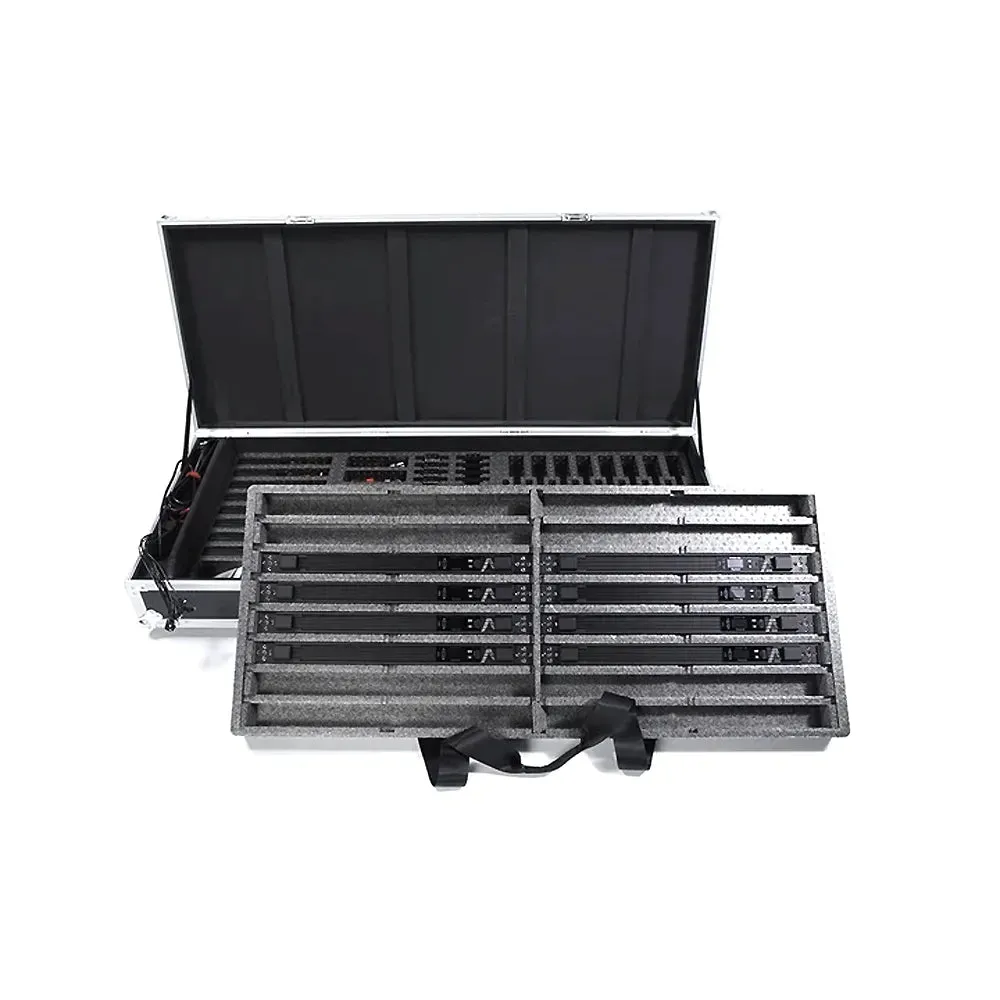

Included Flight Case and 8x 45o Slip-On Light Control Grids
0-100% Brightness Control at 0.1% Increments
Fully Tunable CCT from 2,000K-10,000K G/M Adjustment
Advanced HSI with White Point CCT Control
Industry-standard xy (CIE 1931), RGB, 300 Gel Presets
